When your vehicle’s onboard diagnostics detect a fuel trim system lean bank 1 condition, it signals that the engine is experiencing an imbalance in the air-fuel mixture on the first bank of cylinders. This issue can lead to decreased engine performance, increased emissions, and potential long-term damage if not addressed promptly. In this comprehensive guide, we will explore the intricacies of the fuel trim system, delve into the causes and effects of a lean condition on bank 1, and provide actionable solutions to help you maintain your vehicle’s optimal performance.
What is the Fuel Trim System?
The fuel trim system plays a crucial role in maintaining the correct air-fuel mixture that your engine requires for efficient combustion. It continuously monitors and adjusts the amount of fuel injected into the engine based on various sensor inputs.
Components of the Fuel Trim System
Understanding the components involved in the fuel trim system is essential for diagnosing and resolving issues like fuel trim system lean bank 1. Key components include:
- Oxygen Sensors (O2 Sensors): These sensors measure the amount of oxygen in the exhaust gases, providing crucial data to the engine control unit (ECU).
- Mass Airflow Sensor (MAF): This sensor measures the amount of air entering the engine, helping the ECU determine the appropriate fuel injection level.
- ECU (Engine Control Unit): The brain of the fuel trim system, the ECU processes sensor data and adjusts fuel delivery accordingly.
- Fuel Injectors: These deliver precise amounts of fuel into the combustion chambers based on the ECU’s instructions.
Understanding a Lean Condition in Bank 1
A lean condition occurs when there is too much air and not enough fuel in the combustion mixture. When this happens on bank 1, it specifically affects the first set of cylinders in a V-shaped or flat engine.
Symptoms of a Lean Bank 1 Condition
Recognizing the signs of a fuel trim system lean bank 1 issue can help you address it before it leads to more severe problems. Common symptoms include:
- Engine Misfires: Irregular combustion can cause cylinders to misfire, leading to rough engine performance.
- Poor Fuel Economy: An imbalanced air-fuel mixture often results in increased fuel consumption.
- Check Engine Light (CEL) Activation: The ECU will trigger the CEL to alert you of the lean condition.
- Increased Emissions: A lean mixture can lead to higher levels of unburned oxygen in the exhaust, increasing emissions.
- Engine Hesitation or Stalling: The engine may hesitate during acceleration or even stall under certain conditions.
Causes of Fuel Trim System Lean Bank 1
Several factors can trigger a fuel trim system lean bank 1 condition. Understanding these causes is essential for effective troubleshooting and repair.
Faulty Oxygen Sensors
One of the most common causes of a lean condition is a malfunctioning oxygen sensor. If the O2 sensor on bank 1 fails or provides inaccurate readings, the ECU may not adjust the fuel injection properly.
- Worn-Out Sensors: Over time, oxygen sensors can degrade, leading to incorrect data transmission.
- Contamination: Exposure to contaminants like oil or coolant can impair sensor functionality.
Vacuum Leaks
Vacuum leaks allow excess air to enter the engine, disrupting the air-fuel ratio and causing a lean condition.
- Cracked or Damaged Hoses: Age and wear can cause vacuum hoses to crack or detach.
- Intake Manifold Leaks: Gaps or cracks in the intake manifold can let in unmetered air.
Mass Airflow Sensor Issues
A malfunctioning MAF sensor can misread the amount of incoming air, leading to incorrect fuel injection levels.
- Dirty MAF Sensor: Dirt and debris can coat the sensor, affecting its accuracy.
- Electrical Problems: Faulty wiring or connections can disrupt sensor communication with the ECU.
Exhaust Leaks
Exhaust leaks, especially near the oxygen sensors, can cause false lean readings by introducing extra oxygen into the exhaust stream.
- Damaged Exhaust Pipes: Cracks or holes in the exhaust system can lead to leaks.
- Faulty Gaskets: Worn gaskets between exhaust components can result in leaks.
Fuel Delivery Issues
Problems with the fuel system can prevent adequate fuel from reaching the engine, causing a lean condition.
- Clogged Fuel Injectors: Blocked injectors can restrict fuel flow.
- Low Fuel Pressure: A failing fuel pump or faulty fuel pressure regulator can reduce fuel pressure.
Effects of a Lean Bank 1 Condition
Ignoring a fuel trim system lean bank 1 issue can lead to various negative outcomes for your vehicle’s performance and longevity.
Decreased Engine Performance
A lean mixture can cause the engine to run inefficiently, resulting in sluggish acceleration and reduced power output.
- Poor Throttle Response: Delayed or weak response when pressing the accelerator.
- Rough Idle: The engine may idle unevenly or inconsistently.
Increased Emissions
An imbalanced air-fuel ratio can lead to higher emissions, contributing to environmental pollution and potential regulatory fines.
- Higher NOx Emissions: Increased nitrogen oxide emissions due to higher combustion temperatures.
- Increased Carbon Monoxide: An imperfect burn can release more carbon monoxide into the atmosphere.
Potential Engine Damage
Chronic running of a lean mixture can cause severe engine damage over time.
- Overheating: Excessive air can lead to higher combustion temperatures, risking overheating.
- Piston and Valve Damage: High temperatures can cause pistons and valves to warp or wear prematurely.
- Catalytic Converter Damage: Unburned oxygen may overheat and damage the catalytic converter, a costly repair component.
Diagnosing a Lean Bank 1 Condition
Accurate diagnosis is crucial to effectively address a fuel trim system lean bank 1 issue. Here are the steps to identify and confirm the problem.
Reading Diagnostic Trouble Codes (DTCs)
The first step in diagnosing a lean bank 1 condition is to read the DTCs using an OBD-II scanner. Common codes associated with this issue include:
- P0171: System Too Lean (Bank 1)
- P0174: System Too Lean (Bank 2)
- P0301: Cylinder 1 Misfire Detected
Inspecting Oxygen Sensors
Examine the O2 sensor readings for bank 1 to ensure they are within normal ranges. Use a multimeter or OBD-II scanner to monitor sensor performance.
- Voltage Fluctuations: Healthy O2 sensors typically alternate between 0.1V and 0.9V.
- Response Time: Sensors should respond quickly to changes in the exhaust gas composition.
Checking for Vacuum Leaks
Perform a thorough inspection of all vacuum lines and intake components to identify any leaks.
- Visual Inspection: Look for cracked, disconnected, or damaged hoses.
- Smoke Test: Introduce smoke into the intake system to spot leaks.
Testing the Mass Airflow Sensor
Ensure the MAF sensor is functioning correctly by cleaning it and checking for proper readings.
- Cleaning: Use a MAF cleaner spray to remove dirt and debris from the sensor.
- Electrical Testing: Verify that the sensor is receiving and transmitting accurate data to the ECU.
Evaluating Fuel Delivery
Assess the fuel system to ensure adequate fuel is reaching the engine.
- Fuel Pressure Test: Use a fuel pressure gauge to check if the pressure is within manufacturer specifications.
- Injector Inspection: Look for clogged injectors and consider using a fuel injector cleaner if necessary.
Solutions to Resolve a Lean Bank 1 Condition
Addressing a fuel trim system lean bank 1 issue involves identifying the root cause and implementing the appropriate solution. Here are the most effective methods to resolve this problem.
Replacing Faulty Oxygen Sensors
If the O2 sensor is determined to be faulty, replacing it is essential for restoring proper fuel trim.
- Choose the Right Sensor: Ensure you select a sensor compatible with your vehicle’s make and model.
- Professional Installation: While some DIY enthusiasts can replace O2 sensors, professional installation may be necessary for complex systems.
Fixing Vacuum Leaks
Eliminating vacuum leaks requires repairing or replacing damaged components in the intake system.
- Replace Cracked Hoses: Swap out any cracked or worn vacuum hoses with new ones.
- Seal Intake Manifold Leaks: Use appropriate sealants or gaskets to fix leaks in the intake manifold.
Cleaning or Replacing the Mass Airflow Sensor
A dirty or malfunctioning MAF sensor can disrupt the fuel trim system, so cleaning or replacing it is crucial.
- Clean the MAF Sensor: Use a dedicated MAF cleaner to remove contaminants.
- Replace if Necessary: If cleaning doesn’t restore proper function, consider replacing the sensor.
Repairing Exhaust Leaks
Ensure the exhaust system is airtight to prevent false readings from the O2 sensors.
- Fix Exhaust Pipe Cracks: Weld or replace any cracked sections of the exhaust pipes.
- Replace Faulty Gaskets: Install new gaskets to seal connections between exhaust components.
Improving Fuel Delivery
Enhancing the fuel system’s performance can alleviate a lean condition caused by inadequate fuel.
- Clean Fuel Injectors: Use a high-quality fuel injector cleaner to remove deposits.
- Replace the Fuel Pump: If fuel pressure is low, a new fuel pump may be necessary.
- Install a New Fuel Pressure Regulator: Ensure the fuel pressure remains consistent and within specifications.
Preventing Future Lean Bank 1 Issues
Taking proactive measures can help prevent the recurrence of a fuel trim system lean bank 1 condition.
Regular Maintenance
Adhering to your vehicle’s maintenance schedule ensures all components function correctly.
- Routine Inspections: Regularly inspect hoses, sensors, and other critical parts.
- Scheduled Cleanings: Periodically clean the MAF sensor and fuel injectors to prevent buildup.
Using Quality Fuel
High-quality fuel reduces the likelihood of deposit formation and ensures better engine performance.
- Choose Reputable Gas Stations: Opt for fuel from trusted sources to minimize impurities.
- Use Fuel Additives: Consider using fuel system cleaners to maintain clean injectors and sensors.
Monitoring Engine Performance
Stay attuned to any changes in your vehicle’s behavior to catch issues early.
- Check Engine Light Vigilance: Address any CEL warnings promptly rather than ignoring them.
- Performance Tracking: Keep an eye on fuel economy, acceleration, and idle quality for signs of trouble.
Advanced Diagnostic Techniques
For those seeking a deeper understanding or facing persistent issues, advanced diagnostics can provide more insights into a fuel trim system lean bank 1 condition.
Data Logging and Analysis
Use specialized software to log real-time data from the ECU, allowing for detailed analysis of fuel trim readings and sensor performance.
- Identify Patterns: Look for consistent trends that indicate specific underlying issues.
- Compare to Baseline Data: Use manufacturer specifications to determine deviations.
Smoke Testing
A smoke test can reveal hidden vacuum or exhaust leaks that are not easily visible.
- Professional Tools: Utilize professional smoke testing equipment for accurate results.
- Comprehensive Inspection: Ensure all potential leak points are tested thoroughly.
Fuel System Pressure Profiling
Mapping the fuel system’s pressure can help identify where fuel delivery may be failing.
- Monitor Pressure Changes: Observe how fuel pressure varies under different engine loads.
- Pinpoint Weaknesses: Identify specific areas where pressure drops unexpectedly.
Case Studies: Resolving Lean Bank 1 Conditions
Examining real-world scenarios can provide practical insights into addressing a fuel trim system lean bank 1 issue.
Case Study 1: Faulty Oxygen Sensor Replacement
A 2015 Honda Civic exhibited a P0171 code indicating a lean condition on bank 1. Diagnostic tests revealed that the upstream O2 sensor was providing erratic voltage readings. Replacing the faulty sensor resolved the lean condition, restored fuel efficiency, and turned off the check engine light.
Case Study 2: Eliminating a Vacuum Leak
A 2018 Ford F-150 was experiencing rough idling and poor fuel economy. A smoke test identified a vacuum leak in the intake manifold gasket. After replacing the gasket and sealing the intake, the fuel trim system returned to normal, enhancing engine performance and fuel efficiency.
Case Study 3: Cleaning the MAF Sensor

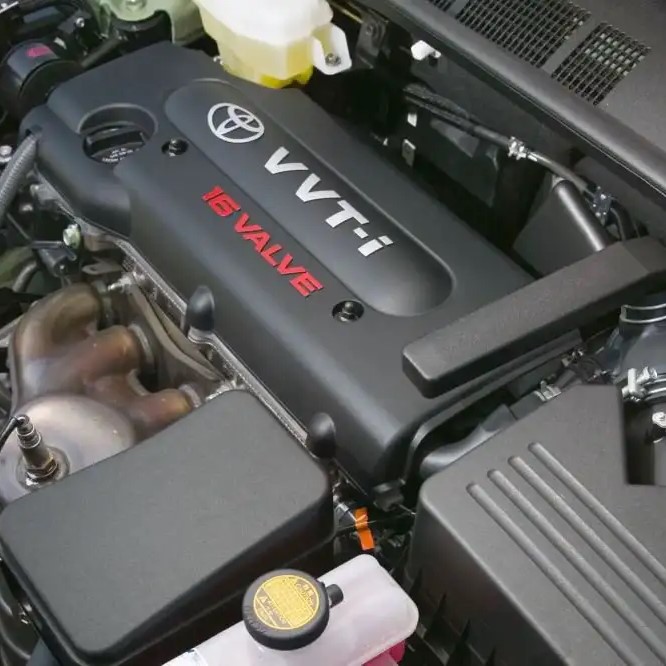

A 2020 Toyota Camry showed intermittent misfires and a lean fuel trim condition. Cleaning the MAF sensor with a dedicated cleaner removed accumulated grime, allowing it to accurately measure airflow. This adjustment corrected the fuel mixture, stabilizing engine performance and fuel consumption.
Tools and Equipment for Diagnosing Lean Bank 1 Issues
Equipping yourself with the right tools can make diagnosing and fixing a fuel trim system lean bank 1 condition more efficient.
OBD-II Scanner
An essential tool for reading diagnostic trouble codes and monitoring live data from the ECU.
- Features to Look For: Bidirectional controls, data logging capabilities, and compatibility with various vehicle models.
- Recommended Models: Devices like the BlueDriver Bluetooth Scanner or the Innova 3160g offer comprehensive features for both DIY enthusiasts and professionals.
Multimeter
Useful for testing the functionality of oxygen sensors, MAF sensors, and other electrical components.
- Types: Digital multimeters provide precise readings and are easier to interpret.
- Usage Tips: Always follow safety guidelines to prevent electrical shorts or damage to components.
Smoke Machine
Ideal for detecting vacuum and exhaust leaks that contribute to a lean fuel trim condition.
- Portable Options: Compact smoke machines are available for mobile diagnostics.
- Effectiveness: Highly effective in identifying leaks that are not visible to the naked eye.
Common Mistakes to Avoid
When dealing with a fuel trim system lean bank 1 condition, avoiding common pitfalls can save time and prevent further issues.
Ignoring the Check Engine Light
Delaying diagnostics and repairs can lead to more severe engine damage and higher repair costs.
- Immediate Action: Address any CEL warnings promptly to maintain vehicle health.
- Regular Monitoring: Use an OBD-II scanner to keep track of any new or existing codes.
Assuming Multiple Causes
Jumping to conclusions about the root cause without proper diagnostics can lead to unnecessary repairs.
- Thorough Testing: Conduct comprehensive diagnostics to identify the actual issue.
- Avoid Guesswork: Rely on data from sensors and diagnostic tools rather than assumptions.
Overlooking Simple Fixes
Sometimes, simple solutions like tightening a loose hose or replacing a damaged gasket can resolve the lean condition.
- Start Simple: Inspect and address the most straightforward potential issues first.
- Cost-Effective Repairs: Simple fixes can save significant time and expense compared to more extensive repairs.
When to Seek Professional Help
While many fuel trim system lean bank 1 issues can be diagnosed and repaired by knowledgeable DIYers, certain situations require professional expertise.
Complex Electrical Problems
Issues with wiring, sensor circuits, or ECU programming often necessitate specialized knowledge and equipment.
- Professional Diagnostics: Technicians have access to advanced diagnostic tools and databases.
- Expert Repairs: Qualified professionals can accurately repair or replace complex electrical components.
Persistent or Intermittent Issues
If the lean condition persists despite your efforts, it may indicate a more severe underlying problem.
- Comprehensive Inspection: A professional can perform a detailed inspection to identify hidden issues.
- Specialized Repairs: Complex problems may require parts or expertise beyond typical DIY capabilities.
Warranty and Safety Concerns
If your vehicle is under warranty or you are concerned about safety, seeking professional assistance is advisable.
- Warranty Compliance: Professional repairs ensure that warranty terms are not violated.
- Safety Assurance: Experts can guarantee that repairs meet safety standards, reducing the risk of accidents.
Conclusion
Addressing a fuel trim system lean bank 1 condition is essential for maintaining your vehicle’s performance, fuel efficiency, and longevity. By understanding the fuel trim system, recognizing the symptoms of a lean condition, and implementing effective diagnostic and repair strategies, you can ensure that your engine runs smoothly and efficiently. Whether you choose to tackle the issue yourself or seek professional assistance, taking prompt action will help prevent more severe engine problems and keep your vehicle running at its best. Stay proactive in your vehicle maintenance, and the benefits of a balanced fuel trim system will be evident in enhanced performance and reliability.
